Industrial Liquid Magnetic Separators designed to capture and remove ferrous contaminants from liquid and slurry pipelines effectively

Brand Name:	TMY
Model Number:	24
MOQ:	100
Payment Terms:	T/T
Supply Ability:	IN STOCK

Detail Information

Product Description

Detail Information

Place of Origin:

TIANJIN,CHINA

Certification:

ISO9001,ISO14001,ISO45001

Data Logging:

Operational Parameters/Cleaning Records

Nterprise Nature:

High-tech Enterprise

Application:

Magnetic Material Separation In Mining, Recycling, And Food Industries

Control System:

Automatic With Manual Override

Interface Size:

DN50–DN300

Weight:

150 Kg

Type:

Electromagnetic Separator

Iron Removal Efficiency:

≥99%

Rated Power:

Small-sized ≤5kW; Large-sized 10–20kW

Core Business:

Magnetic Separation Equipment

Productname:

Electro Magnetic Separator

Certification System:

ISO9001, ISO14001, ISO45001

Dimensions:

1200mm X 800mm X 1000mm

Factory Building Area:

3,500 Square Meters

Material:

Stainless Steel

Product Description

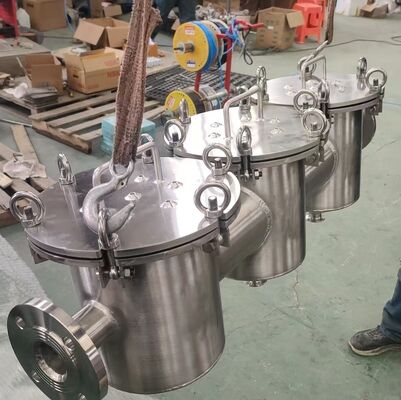

Pipeline Magnetic Separator (Liquid Type)

Our Pipeline Magnetic Separator (Liquid Type) is a robust industrial solution designed to capture ferrous contaminants from liquid streams, slurries, and viscous fluids. Constructed with a carbon steel shell (with optional stainless steel upgrade) and high-intensity neodymium magnetic rods, it delivers reliable iron removal while ensuring smooth flow and easy maintenance.

Ideal for water treatment, chemical processing, food & beverage, and mining industries, it protects downstream equipment and guarantees product purity. The compact, vertical pipeline design integrates seamlessly into existing piping systems via flanged connections. The quick-release swing bolt lid and lifting eye allow for fast access to the magnetic rod assembly, simplifying cleaning and inspection.

Key Features

Dual Material Construction: Carbon steel shell for durability and cost-effectiveness; optional 304/316L stainless steel for corrosive or hygienic applications.
High-Gradient Magnetic Force: Premium neodymium magnets (≥12,000 Gauss) effectively capture fine iron particles, rust, and ferromagnetic debris from liquid flows.
Easy Maintenance: Quick-release swing bolt lid and lifting eye enable fast removal of magnetic rods for cleaning, minimizing downtime.
Flanged Connection: Standard ANSI/GB flanges for direct integration into pipeline systems, ensuring leak-proof operation.
Customizable Sizing: Available in various pipe diameters (DN50-DN300) and magnetic rod configurations to match flow rates and process requirements.

Applications

Water Treatment: Industrial process water, cooling water, and wastewater purification
Food & Beverage: Edible oils, juices, syrups, and dairy products
Chemical Processing: Industrial liquids, solvents, and chemical slurries
Mining & Minerals: Mineral slurries and ore processing fluids
Petrochemical: Oilfield fluids and lubricants

Why Choose Our Pipeline Magnetic Separator?

✅ Superior Contaminant Capture: High-intensity magnets remove even sub-millimeter ferrous particles.

✅ Low Maintenance Design: Quick-access lid reduces cleaning time and labor costs.

✅ Flexible Integration: Flanged connections fit seamlessly into existing pipelines.

✅ Durable Performance: Rugged construction ensures long service life in harsh industrial environments.

Technical Specifications

Parameter	Details
Shell Material	Carbon Steel / 304/316L Stainless Steel
Magnetic Grade	Neodymium (N35-N52), ≥12,000 Gauss
Connection Type	Flanged (ANSI/GB Standard)
Nominal Diameter	DN50 - DN300 (Customizable)
Design Pressure	0-1.0 MPa (Customizable)
Surface Finish	Painted Carbon Steel / Polished Stainless Steel
