Automated Liquid Processing Skid with 12000 Gauss Magnetic Separation and Stainless Steel Construction for 5 tons/hour Capacity

Brand Name:	TMY
Model Number:	21
MOQ:	10
Payment Terms:	T/T
Supply Ability:	IN STOCK

Detail Information

Product Description

Detail Information

Place of Origin:

TIANJIN, CHINA

Certification:

ISO9001

Operatingtemperature:

-10°C To 50°C

Productname:

Electro Magnetic Separator

Nterprise Nature:

High-tech Enterprise

Material:

Stainless Steel

Magneticfieldstrength:

12000 Gauss

Separationtype:

Magnetic Separation

Power:

1.5 KW

Data Logging:

Operational Parameters/Cleaning Records

Capacity:

5 Tons/hour

Applicable Humidity:

Usually ≤8% (dry Powder State)

Dimensions:

1500 X 800 X 1200 Mm

Temperature Alarm:

Overheat Protection

Voltage:

220V

Frequency:

50 Hz

Iron Removal Efficiency:

≥99%

Highlight:

12000 Gauss Automated Liquid Processing Skid

Stainless Steel Electro Magnetic Separator

5 tons/hour Industrial Liquid Processing System

Product Description

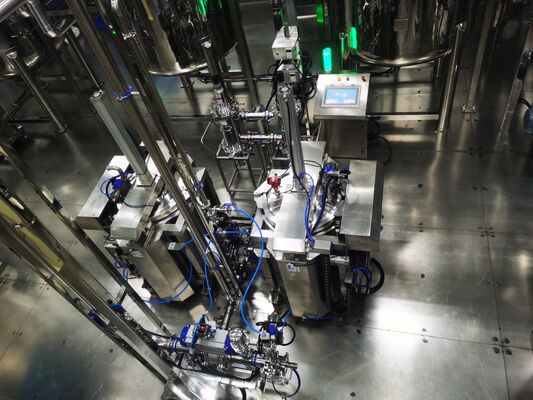

Our Automated Liquid Processing Skid is a turnkey, fully integrated industrial solution designed for precise liquid handling, filtration, and dispensing in hygienic processing environments. Constructed entirely from food-grade 304/316L stainless steel, this skid combines pneumatic actuated valves, multi-stage filtration, and automated control to deliver consistent, contamination-free results.

Ideal for pharmaceutical, cosmetic, and high-end food & beverage production lines, the system features a compact footprint with vertical material handling and automated workflow sequencing. The integrated HMI touchscreen control panel allows for full customization of processing parameters, ensuring compliance with strict industry standards (GMP, FDA, EHEDG).

Key Features

Fully Integrated Skid Design: Pre-assembled, space-efficient unit with all components pre-piped and wired, reducing on-site installation time.
Hygienic Stainless Steel Construction: Polished, crevice-free finish meets the highest sanitary standards for food, pharma, and cosmetic industries.
Automated Filtration System: Multi-stage filtration with pneumatically actuated valves for automatic backwashing or self-cleaning cycles, minimizing manual intervention.
Precision Pneumatic Actuation: Blue air lines connect to industrial-grade pneumatic valves for fast, reliable, and hygienic flow control.
Intuitive HMI Control: Touchscreen interface for real-time monitoring, parameter adjustment, and automated cycle execution (start/stop, timing, interlocks).
Smart Process Monitoring: Equipped with status indicator lights and sensor integration to ensure safe and efficient operation.

Applications

Pharmaceutical & Nutraceuticals: API solution preparation, sterile filtration, and final product dispensing
Cosmetics & Personal Care: Emulsion, serum, and lotion production with precise ingredient metering
Food & Beverage: High-purity liquid processing, flavor infusion, and sterile filling lines
Specialty Chemicals: Filtration and dispensing of high-grade chemical liquids

System Benefits

Turnkey Convenience: Eliminates the complexity of sourcing and integrating individual components.
Maximized Hygiene: Sanitary design prevents product cross-contamination and is easy to clean (CIP/SIP compatible).
Operational Efficiency: Automated cycles reduce labor costs and ensure consistent batch quality.
Space-Saving: Vertical skid design optimizes floor space in crowded production facilities.
Regulatory Compliance: Built to meet GMP, FDA, and EHEDG guidelines for regulated industries.

Technical Specifications

Main Material	304/316L Stainless Steel (Sanitary Polished)
Control System	PLC + HMI Touchscreen (Customizable Brand)
Actuation	Pneumatic Valves (Air Cylinder Driven)
Filtration Stages	Customizable (Cartridge Filter / Magnetic / Bag Filter)
Working Pressure	0-1.0 MPa (Customizable)
Flow Rate	Customizable (Based on Client Requirements)
Power Supply	220V/380V, 50/60Hz
Air Supply	0.5-0.7 MPa
