Self-Cleaning Permanent Magnetic Separator for Fluids | 8000-15000GS, ≥99.5% Iron Removal Rate

Brand Name:	TMY
MOQ:	10
Payment Terms:	T/T
Supply Ability:	IN STOCK

Detail Information

Product Description

Detail Information

Place of Origin:

TIANJIN,CHINA

Certification:

ISO9001

Product Name:

Automatic Self-Cleaning Permanent Magnetic Separator For Fluids

Magnetic Parameter:

8000-15000GS Field Strength, 3000GS/cm Magnetic Gradient

Fluid Processing Capacity:

1-50m³/h

Impurity Removal Rate:

Iron Filings ≥99.5%, Iron Powder ≥99%, Iron Oxide ≥98%

Cleaning Mode:

Self-cleaning Controlled By Time / Pressure Difference / Impurity Threshold

Housing Material:

304/316L Stainless Steel, Dead-zone Free Rounded Design

Protection Class:

IP66/IP67

Power Consumption:

Zero Power For Permanent Magnetic Type

Product Description

Automatic Slurry Iron Removal Unit | Pressure Triggered Self-Cleaning, Dead-Zone Free

2. Core Selling Paragraph

Adopted NdFeB magnetic system with 8000-15000GS field strength to remove 1μm fine impurities at ≥99.5% removal rate. Equipped with multi-mode self-cleaning system, it works well for fluids and slurries. Made of acid & alkali resistant 304/316L stainless steel, this permanent magnetic unit runs with zero power consumption around the clock.

3. Product Specifications

Item	Specification
Product Name	Automatic Self-Cleaning Permanent Magnetic Separator for Fluids
Magnetic Parameter	8000-15000GS field strength, 3000GS/cm magnetic gradient
Fluid Processing Capacity	1-50m³/h
Impurity Removal Rate	Iron filings ≥99.5%, Iron powder ≥99%, Iron oxide ≥98%
Cleaning Mode	Self-cleaning controlled by time / pressure difference / impurity threshold
Housing Material	304/316L stainless steel, dead-zone free rounded design
Protection Class	IP66/IP67
Power Consumption	Zero power for permanent magnetic type

4. Product Introduction

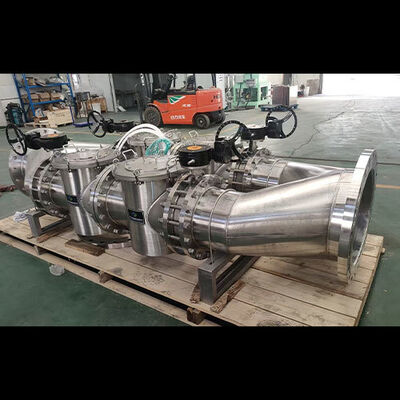

This automatic self-cleaning permanent magnetic separator is specially developed for iron removal of liquids and slurries. Fitted with high-performance NdFeB magnetic rods, it features strong magnetic field and high gradient to capture tiny iron impurities as small as 1μm with excellent separation effect. The automatic self-cleaning function enables non-stop production. Featuring acid and alkali resistant stainless steel housing, it is applicable to corrosive fluids in food, pharmaceutical, chemical and other industries. It can be installed in multiple ways and connected to existing production lines directly. With outstanding protection performance and zero power consumption, it supports 24-hour continuous operation, greatly improving material purity and protecting production equipment.

5. FAQ

Q1: What is the magnetic field strength of this separator?

A: Its magnetic field strength is 8000-15000GS with a gradient of 3000GS/cm.

Q2: What is the processing capacity for liquid materials?

A: The fluid processing capacity reaches 1-50m³/h.

Q3: What is the impurity removal efficiency?

A: The removal rate of iron filings is over 99.5%, iron powder over 99% and iron oxide over 98%.

Q4: How does the self-cleaning system work?

A: It supports automatic cleaning controlled by time, pressure difference or impurity adsorption threshold.

Q5: What material is the equipment shell made of?

A: The shell is made of 304/316L stainless steel with no dead angle design.
