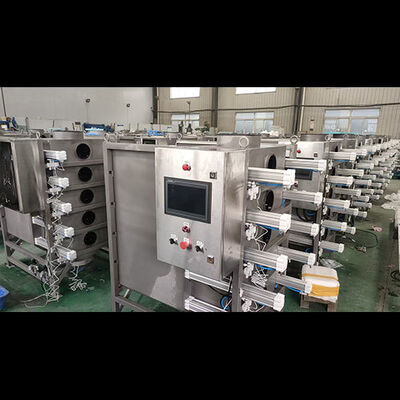

Self-Cleaning Drawer-Type Magnetic Separator with IP66/IP67 Protection Grade, Automatic On-Demand Cleaning, and Dead-angle-free Design

Self-Cleaning Drawer-Type Magnetic Separator with IP66/IP67 Protection Grade, Automatic On-Demand Cleaning, and Dead-angle-free Design

Brand Name:	TMY
MOQ:	100
Payment Terms:	T/T
Supply Ability:	IN STOCK

Detail Information

Product Description

Detail Information

Place of Origin:

TIANJIN,CHINA

Certification:

ISO9001,ISO14001,ISO45001

Cleaning Frequency:

Automatic Detection, On‑demand Cleaning

Material Type:

Powder / Particle / Slurry / Fluid

Material Feature:

Dry / Wet / Sticky / Corrosive

Installation Method:

Horizontal / Vertical / Inclined Installation

Cleaning Media:

Compressed Air / Clean Water / Solvent

Dead‑angle‑free Design:

Rounded Corner R≥5mm

Protection Grade:

IP66/IP67

Magnet Protection:

Water‑cooled / Air‑cooled System

Highlight:

IP66/IP67 Protection Grade Drawer-Type Magnetic Separator

Automatic On-Demand Cleaning Self-Cleaning Magnetic Separator

Dead-angle-free Design Drawer Filter Magnet

Product Description

Core Advantages

Automatic On‑demand Cleaning: Realize automatic detection and on‑demand cleaning, no frequent manual intervention, suitable for continuous production lines.
Wide Material Compatibility: Process powder, particle, slurry and fluid, compatible with dry, wet, sticky and corrosive materials.
Multiple Installation Options: Horizontal, vertical and inclined installation modes to fit various production‑line layouts.

Product Parameters

Item	Specification
Cleaning Frequency	Automatic detection, on‑demand cleaning
Material Type	Powder / Particle / Slurry / Fluid
Material Feature	Dry / Wet / Sticky / Corrosive
Installation Method	Horizontal / Vertical / Inclined installation
Cleaning Media	Compressed air / Clean water / Solvent
Dead‑angle‑free Design	Rounded corner R≥5mm
Protection Grade	IP66/IP67
Magnet Protection	Water‑cooled / Air‑cooled system

Product Description

Self‑cleaning drawer‑type magnetic separator is specially developed for chemical and building material industries. It features automatic detection and on‑demand cleaning, handling powder, particle, slurry and fluid including dry, wet, sticky and corrosive materials. Horizontal, vertical and inclined installation are supported. Cleaning media include compressed air, clean water and solvent. The dead‑angle‑free structure with rounded corner R≥5mm minimizes material residue. IP66/IP67 protection grade together with water‑cooled or air‑cooled magnet protection system ensures stable performance under harsh conditions. It removes iron impurities for plastic pellets, pigment powder, coating raw material, quartz sand powder and kaolin powder. It protects downstream equipment, purifies raw materials and improves finished product quality, color purity and material whiteness for continuous production lines.

Q&A

Q1: What materials can this separator process?

A1: It can process powder, particle, slurry and fluid, including dry, wet, sticky and corrosive materials.

Q2: What installation forms are available?

A2: Horizontal, vertical and inclined installation to adapt different production‑line layouts.

Q3: What is the protection grade of the equipment?

A3: IP66/IP67, capable of working in dusty and humid harsh conditions.

Q4: What cleaning media can be selected?

A4: Compressed air, clean water and solvent are optional.

Q5: What chemical and building‑material materials is it suitable for?

A5: It is suitable for iron removal and purification of plastic pellets, pigment powder, coating raw material, quartz sand powder and kaolin powder.
