Self-Cleaning Magnetic Separator with Dual Power Voltage AC380V/220V, Adjustable Cleaning Cycle, and NdFeB Magnet Bars

Self-Cleaning Magnetic Separator with Dual Power Voltage AC380V/220V, Adjustable Cleaning Cycle, and NdFeB Magnet Bars

Brand Name:	TMY
MOQ:	100
Payment Terms:	T/T
Supply Ability:	IN STOCK

Detail Information

Product Description

Detail Information

Place of Origin:

TIANJIN,CHINA

Certification:

ISO9001,ISO14001,ISO45001

Cleaning Cycle:

Adjustable

Cleaning Method:

Self-cleaning

Cleaning Control:

Timer / Differential Pressure / Impurity Adsorption Threshold Control

Housing Material:

304 / 316L Stainless Steel

Magnet Bar Material:

NdFeB (Neodymium Iron Boron)

Inlet Type:

Round Flange

Power Supply Voltage:

AC380V / 220V

Control Voltage:

DC24V / AC220V

Standard Working Temperature:

20℃ ~ +80℃

Highlight:

Self-cleaning separator with dual voltage

Drawer filter magnet with global power

Separator with AC380V/220V control voltage

Product Description

Core Selling Paragraph

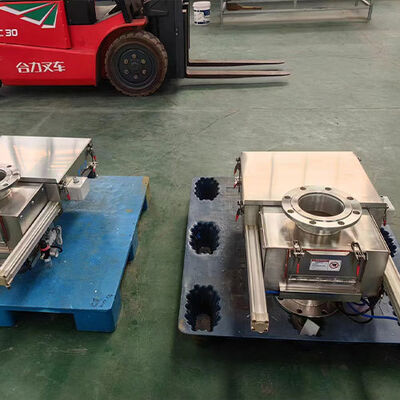

This self-cleaning drawer type permanent magnetic separator features 304/316L stainless steel housing and high-performance NdFeB permanent magnet bars with strong, long-lasting magnetic force. It operates in self-cleaning mode with adjustable cleaning cycle. The cleaning control system supports three intelligent control modes — timer setting, differential pressure detection and impurity adsorption threshold — which can be switched flexibly according to actual working conditions for unattended continuous operation. The inlet adopts round flange design for easy connection to industrial pipelines. Power voltage supports dual specifications AC380V/220V, and control voltage supports DC24V/AC220V to adapt to global regional power standards. Standard working temperature ranges 20℃~+80℃, meeting most industrial application requirements. The robust corrosion-resistant structure with optional food-grade 316L material suits high-hygiene industries such as food, pharmaceutical and fine chemical. Our factory manufactures various industrial iron removal and magnetic separation equipment, with OEM & ODM customization on material, magnetic strength, size and connection for global food, chemical, mining and pharmaceutical clients.

3. Product Specifications

Item	Exact Parameter
Cleaning Cycle	Adjustable
Cleaning Method	Self-cleaning
Cleaning Control	Timer / Differential pressure / Impurity adsorption threshold control
Housing Material	304 / 316L Stainless Steel
Magnet Bar Material	NdFeB (Neodymium Iron Boron)
Inlet Type	Round Flange
Power Supply Voltage	AC380V / 220V
Control Voltage	DC24V / AC220V
Standard Working Temperature	20℃ ~ +80℃
Machine Type	Self-Cleaning Drawer Type Permanent Magnetic Separator
Factory Product Line & Service	Industrial magnetic separators, drawer type / pipeline type / grate type iron removal devices; OEM & ODM customization on material, magnetic strength, size & connection supported

4. Product Description

Our factory specializes in R&D, manufacturing and export of industrial iron removal and magnetic separation equipment. This self-cleaning drawer permanent magnetic separator is a fully automatic iron removal device designed for continuous industrial production lines, combining structural durability and intelligent control, widely suitable for food, pharmaceutical, chemical and new material industries.

The housing is made of 304/316L stainless steel, corrosion-resistant and easy to clean; 316L food & pharmaceutical grade option meets compliance requirements of high-hygiene industries. Internal magnet bars adopt high-performance NdFeB permanent magnet material with strong magnetic force, low demagnetization rate and long service life. The inlet is standard round flange structure, connecting directly to existing industrial pipelines and hopper outlets with simple installation and tight sealing without dust leakage.

5. FAQ

Q1: What materials are the housing and magnet bars made of?

A1: Housing material: 304/316L stainless steel; magnet bar material: NdFeB (Neodymium Iron Boron) permanent magnet.

Q2: What is the cleaning method, how many cleaning control modes are there, and is the cleaning cycle adjustable?

A2: Cleaning method: self-cleaning; supports three control modes — timer, differential pressure and impurity adsorption threshold; cleaning cycle is adjustable.

Q3: What type is the inlet, and is it easy to install and connect?

A3: Inlet type: round flange; connects directly to standard industrial pipelines with easy installation and good sealing performance.

Q4: What power supply voltage and control voltage specifications are supported, and what is the standard working temperature range?

A4: Power supply voltage: AC380V/220V supported; control voltage: DC24V/AC220V supported; standard working temperature: 20℃~+80℃.

Q5: What customization services does our factory offer, and which industries is it mainly applied in?

A5: OEM & ODM customization available for housing material, magnetic strength, equipment dimensions and inlet specifications. Widely applied in food, pharmaceutical, chemical, mining and new material industries.
